Talking about fire protection equipment power monitoring system
2025-05-28 15:07:49
The necessity of setting up the power monitoring system for fire-fighting equipment is introduced, and the fire power monitoring system is introduced in detail.
Yang Junjun
Ankerui Electric Co., Ltd. Shanghai Jiading 201801
0 Preface
Automatic fire alarms and automatic fire suppression systems have become an important part of the building. All along, the operation and maintenance of the fire-fighting equipment power supply system is managed by the equipment maintenance personnel of the property management company. Whether it is normal or not depends largely on the maintenance management mechanism and the responsibility of the maintenance personnel. It cannot guarantee the normal operation of the fire-fighting equipment power supply and fire-fighting equipment. Run effectively. In recent years, fire-fighting equipment has not been able to operate normally in the event of a fire accident due to equipment power failure, causing frequent incidents of heavy casualties and property damage. Especially in the state of tight power supply and long-term environmentally unsatisfactory power equipment, the problem of power failure of fire-fighting equipment is particularly prominent.
In order to realize the real-time management of the fire equipment power supply and eliminate the negligence of manual maintenance, it is necessary to strengthen the fire control room management and real-time monitoring and management of the most important fire equipment power supply through technical measures. GB25506-2010 "General Technical Requirements for Fire Control Room" shall make a mandatory provision for the fire control room. The fire control room shall be able to display the working status and undervoltage alarm information of the power supply and backup power of each fire-fighting equipment in the system. . By setting up the fire-fighting equipment power monitoring system, real-time monitoring and management of the fire-fighting equipment power supply is realized, ensuring the running state of the building fire-fighting equipment is intact, improving the fire safety management level of the building, and eliminating the power failure of the fire-fighting equipment in time to prevent and reduce the fire hazard in the building.
GB28184-2011 "Fire Power Monitoring System" stipulates that the fire power monitoring system is used to monitor the working state of the fire equipment power supply, and can issue an alarm when the power supply has overvoltage, undervoltage, overcurrent, and lack of equal faults, and mandatory fire protection is imposed. Basic functions, test and inspection rules of the power monitoring system.
1 Fire equipment power monitoring system overview
The fire equipment power monitoring system can accurately monitor the fault and abnormal state of the fire equipment power supply, and comprehensively monitor the voltage, current, circuit breaker overvoltage, undervoltage, overcurrent, and lack of equal faults to prevent fire equipment from being used normally. The phenomenon that the fire cannot be effectively controlled and spread is ensured, and the fire-fighting equipment is effectively operated when the fire occurs.
The fire power monitoring system has the characteristics of reliability and real-time performance, and has the functions of digitalization, intelligence, network, automation and real-time monitoring. It monitors the status of the power supply of the equipment in real time and displays it in a centralized manner to solve the problem that the fire equipment fails due to power failure. The problem of operation maximizes the reliability of the fire linkage system.
The AFPM100 fire equipment power monitoring system is shown in Figure 1.
Figure 1 AFPM100 fire equipment power monitoring system
AFPM100 fire equipment power monitoring system consists of monitoring background, monitor, voltage sensor, current sensor and transmission cable. The monitoring background can manage up to 10 monitors, each monitor can monitor 128 monitoring modules; the power of each monitoring module is directly powered by the monitor, and the distance between the system host and the monitor using RS485 communication is 1000 meters, more than 1000 meters. Use fiber optic communication.
The fire equipment power monitoring system is shown in Figure 2.

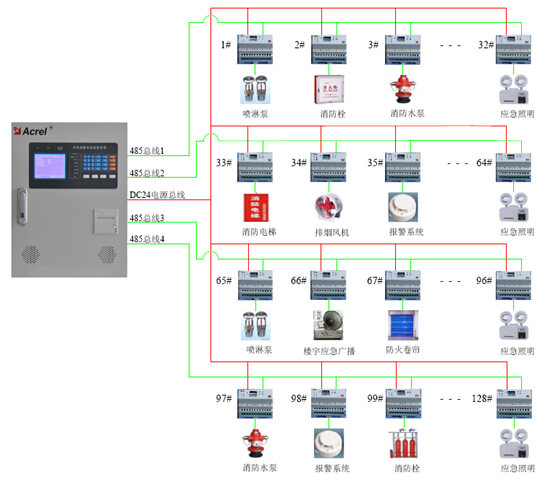

Figure 2 Fire equipment power monitoring system
2 AFPM100 monitor
The monitoring host adopts a centralized and modular design to track, collect, store and analyze the parameters of the fire equipment power supply, such as operation information, fault information and position information, to facilitate user management and monitoring; through the liquid crystal display interface, the fire protection The data of the device power supply is displayed in a summary, with functions such as management, viewing, alarm, and printing. The number of circuits in the monitor can be matched with 128 monitoring modules.
3 AFPM-ZJQ fire equipment power monitoring repeater
The AFPM-ZJQ firefighting equipment power monitoring repeater (hereinafter referred to as the repeater) is suitable for systems where the monitor (host) and the field sensor (monitor module) have a long communication distance. The repeater not only increases the communication distance of the system, but also supplies power to the connected field sensor (monitor module) to solve the attenuation of the communication signal and power output due to the long distance. The repeater transmits the power information of the connected field module and the repeater to the monitor (host) through the communication bus.
4 fire equipment power monitoring sensor
4.1 Sensor selection
Table 1 Sensor selection list
4.2 Sensor Introduction
4.2.1 Single-phase power monitoring module
Figure 3 Single-phase power monitoring module
Features
â— Real-time monitoring of one-way AC voltage/current, one DC voltage/current, or two single-phase AC voltages;
â— With overvoltage, undervoltage, overcurrent (only with current detection products) alarm;
â— Provide one or two channels (only monitor two single-phase AC voltage products) switch input function, which can monitor the switch status;
â— Provide one relay output, which can be connected to the alarm control loop;
â— With event storage function, the alarm can record the time, type and parameters of the alarm occurrence, and can analyze the scene according to the alarm record to provide a basis for eliminating the fault;
â—With fieldbus communication technology, the host computer management software can monitor the operation of the site at all times and discover the alarm information in time. The standard MODBUS protocol can be connected to various standard systems via the RS485 interface;
â— High integration, network, high degree of intelligence, and reasonable action characteristics.
4.2.2 Three-phase power monitoring module
Figure 4 three-phase power monitoring module
Features
â— Real-time monitoring of one-way three-phase AC voltage/current, or two three-phase voltages;
â— With overvoltage, undervoltage, phase loss, phase error, overcurrent (only with current detection products) alarm;
â— Provide one or two channels (only monitor two-way three-phase AC voltage products) switch input function, which can monitor the switch status;
â— Provide one relay output, which can be connected to the alarm control loop;
â— With event storage function, the alarm can record the time, type and parameters of the alarm occurrence, and can analyze the scene according to the alarm record to provide a basis for eliminating the fault;
â—With fieldbus communication technology, the host computer management software can monitor the operation of the site at all times and discover the alarm information in time. The standard MODBUS protocol can be connected to various standard systems via the RS485 interface;
â— High integration, network, high degree of intelligence, and reasonable action characteristics.
4.2.3 Switch Module
Figure 5 Switch Module
Features
â— Provide two-way or six-way digital input function to monitor the switch status;
â— Provide one or two relay outputs, which can be connected to the alarm control circuit;
â— With event storage function, the alarm can record the time, type and parameters of the alarm occurrence, and can analyze the scene according to the alarm record to provide a basis for eliminating the fault;
â—With fieldbus communication technology, the host computer management software can monitor the operation of the site at all times and discover the alarm information in time. The standard Modbus protocol can be connected to various standard systems via the RS485 interface;
â— High integration, network, high degree of intelligence, and reasonable action characteristics.
Double power supply exhaust and exhaust fan fire equipment power monitoring system diagram shown in Figure 6.
Fig.6 Diagram of power supply monitoring system for fire-fighting equipment of exhaust and exhaust fan
5 Conclusion
As a kind of pre-alarm product, the fire equipment power monitoring system can monitor the fire equipment power supply in real time, and can alarm the power failure of the fire equipment in advance, and ensure the fire equipment is in normal operation when a fire occurs in the building; it can also solve the property management company. The maintenance intensity of fire-fighting equipment ensures the normal operation of fire-fighting facilities, improves the level of fire prevention and management, promptly eliminates power failures of fire-fighting equipment, reduces fire hazards, and protects personal and property safety. It has obvious social and economic benefits.
references
[1] GB 50116-2013 Fire automatic alarm system design specification [S]
[2] GB 28184-2011 Fire equipment power monitoring system [S]
[3] GB 25506-2010 General technical requirements for fire control room [S]
[4] Ankerui Electric Co., Ltd. Product Selection Manual 2014.11 Edition.
[5] Ankerui fire equipment power monitoring system design and application atlas 2014.5 version.
About the author: Yang Junjun, female, undergraduate. Position: Now working for Ankerui Electric Co., Ltd., contact number, mobile phone, QQ
Http://news.chinawj.com.cn Editor: (Hardware Business Network Information Center) http://news.chinawj.com.cn
Yang Junjun
Ankerui Electric Co., Ltd. Shanghai Jiading 201801
0 Preface
Automatic fire alarms and automatic fire suppression systems have become an important part of the building. All along, the operation and maintenance of the fire-fighting equipment power supply system is managed by the equipment maintenance personnel of the property management company. Whether it is normal or not depends largely on the maintenance management mechanism and the responsibility of the maintenance personnel. It cannot guarantee the normal operation of the fire-fighting equipment power supply and fire-fighting equipment. Run effectively. In recent years, fire-fighting equipment has not been able to operate normally in the event of a fire accident due to equipment power failure, causing frequent incidents of heavy casualties and property damage. Especially in the state of tight power supply and long-term environmentally unsatisfactory power equipment, the problem of power failure of fire-fighting equipment is particularly prominent.
In order to realize the real-time management of the fire equipment power supply and eliminate the negligence of manual maintenance, it is necessary to strengthen the fire control room management and real-time monitoring and management of the most important fire equipment power supply through technical measures. GB25506-2010 "General Technical Requirements for Fire Control Room" shall make a mandatory provision for the fire control room. The fire control room shall be able to display the working status and undervoltage alarm information of the power supply and backup power of each fire-fighting equipment in the system. . By setting up the fire-fighting equipment power monitoring system, real-time monitoring and management of the fire-fighting equipment power supply is realized, ensuring the running state of the building fire-fighting equipment is intact, improving the fire safety management level of the building, and eliminating the power failure of the fire-fighting equipment in time to prevent and reduce the fire hazard in the building.
GB28184-2011 "Fire Power Monitoring System" stipulates that the fire power monitoring system is used to monitor the working state of the fire equipment power supply, and can issue an alarm when the power supply has overvoltage, undervoltage, overcurrent, and lack of equal faults, and mandatory fire protection is imposed. Basic functions, test and inspection rules of the power monitoring system.
1 Fire equipment power monitoring system overview
The fire equipment power monitoring system can accurately monitor the fault and abnormal state of the fire equipment power supply, and comprehensively monitor the voltage, current, circuit breaker overvoltage, undervoltage, overcurrent, and lack of equal faults to prevent fire equipment from being used normally. The phenomenon that the fire cannot be effectively controlled and spread is ensured, and the fire-fighting equipment is effectively operated when the fire occurs.
The fire power monitoring system has the characteristics of reliability and real-time performance, and has the functions of digitalization, intelligence, network, automation and real-time monitoring. It monitors the status of the power supply of the equipment in real time and displays it in a centralized manner to solve the problem that the fire equipment fails due to power failure. The problem of operation maximizes the reliability of the fire linkage system.
The AFPM100 fire equipment power monitoring system is shown in Figure 1.
Figure 1 AFPM100 fire equipment power monitoring system
AFPM100 fire equipment power monitoring system consists of monitoring background, monitor, voltage sensor, current sensor and transmission cable. The monitoring background can manage up to 10 monitors, each monitor can monitor 128 monitoring modules; the power of each monitoring module is directly powered by the monitor, and the distance between the system host and the monitor using RS485 communication is 1000 meters, more than 1000 meters. Use fiber optic communication.
The fire equipment power monitoring system is shown in Figure 2.
Figure 2 Fire equipment power monitoring system
2 AFPM100 monitor
The monitoring host adopts a centralized and modular design to track, collect, store and analyze the parameters of the fire equipment power supply, such as operation information, fault information and position information, to facilitate user management and monitoring; through the liquid crystal display interface, the fire protection The data of the device power supply is displayed in a summary, with functions such as management, viewing, alarm, and printing. The number of circuits in the monitor can be matched with 128 monitoring modules.
3 AFPM-ZJQ fire equipment power monitoring repeater
The AFPM-ZJQ firefighting equipment power monitoring repeater (hereinafter referred to as the repeater) is suitable for systems where the monitor (host) and the field sensor (monitor module) have a long communication distance. The repeater not only increases the communication distance of the system, but also supplies power to the connected field sensor (monitor module) to solve the attenuation of the communication signal and power output due to the long distance. The repeater transmits the power information of the connected field module and the repeater to the monitor (host) through the communication bus.
4 fire equipment power monitoring sensor
4.1 Sensor selection
Table 1 Sensor selection list
4.2 Sensor Introduction
4.2.1 Single-phase power monitoring module
Figure 3 Single-phase power monitoring module
Features
â— Real-time monitoring of one-way AC voltage/current, one DC voltage/current, or two single-phase AC voltages;
â— With overvoltage, undervoltage, overcurrent (only with current detection products) alarm;
â— Provide one or two channels (only monitor two single-phase AC voltage products) switch input function, which can monitor the switch status;
â— Provide one relay output, which can be connected to the alarm control loop;
â— With event storage function, the alarm can record the time, type and parameters of the alarm occurrence, and can analyze the scene according to the alarm record to provide a basis for eliminating the fault;
â—With fieldbus communication technology, the host computer management software can monitor the operation of the site at all times and discover the alarm information in time. The standard MODBUS protocol can be connected to various standard systems via the RS485 interface;
â— High integration, network, high degree of intelligence, and reasonable action characteristics.
4.2.2 Three-phase power monitoring module
Figure 4 three-phase power monitoring module
Features
â— Real-time monitoring of one-way three-phase AC voltage/current, or two three-phase voltages;
â— With overvoltage, undervoltage, phase loss, phase error, overcurrent (only with current detection products) alarm;
â— Provide one or two channels (only monitor two-way three-phase AC voltage products) switch input function, which can monitor the switch status;
â— Provide one relay output, which can be connected to the alarm control loop;
â— With event storage function, the alarm can record the time, type and parameters of the alarm occurrence, and can analyze the scene according to the alarm record to provide a basis for eliminating the fault;
â—With fieldbus communication technology, the host computer management software can monitor the operation of the site at all times and discover the alarm information in time. The standard MODBUS protocol can be connected to various standard systems via the RS485 interface;
â— High integration, network, high degree of intelligence, and reasonable action characteristics.
4.2.3 Switch Module
Figure 5 Switch Module
Features
â— Provide two-way or six-way digital input function to monitor the switch status;
â— Provide one or two relay outputs, which can be connected to the alarm control circuit;
â— With event storage function, the alarm can record the time, type and parameters of the alarm occurrence, and can analyze the scene according to the alarm record to provide a basis for eliminating the fault;
â—With fieldbus communication technology, the host computer management software can monitor the operation of the site at all times and discover the alarm information in time. The standard Modbus protocol can be connected to various standard systems via the RS485 interface;
â— High integration, network, high degree of intelligence, and reasonable action characteristics.
Double power supply exhaust and exhaust fan fire equipment power monitoring system diagram shown in Figure 6.

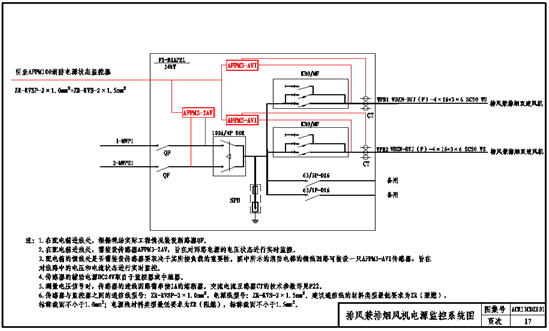

Fig.6 Diagram of power supply monitoring system for fire-fighting equipment of exhaust and exhaust fan
5 Conclusion
As a kind of pre-alarm product, the fire equipment power monitoring system can monitor the fire equipment power supply in real time, and can alarm the power failure of the fire equipment in advance, and ensure the fire equipment is in normal operation when a fire occurs in the building; it can also solve the property management company. The maintenance intensity of fire-fighting equipment ensures the normal operation of fire-fighting facilities, improves the level of fire prevention and management, promptly eliminates power failures of fire-fighting equipment, reduces fire hazards, and protects personal and property safety. It has obvious social and economic benefits.
references
[1] GB 50116-2013 Fire automatic alarm system design specification [S]
[2] GB 28184-2011 Fire equipment power monitoring system [S]
[3] GB 25506-2010 General technical requirements for fire control room [S]
[4] Ankerui Electric Co., Ltd. Product Selection Manual 2014.11 Edition.
[5] Ankerui fire equipment power monitoring system design and application atlas 2014.5 version.
About the author: Yang Junjun, female, undergraduate. Position: Now working for Ankerui Electric Co., Ltd., contact number, mobile phone, QQ
Http://news.chinawj.com.cn Editor: (Hardware Business Network Information Center) http://news.chinawj.com.cn
