Stainless Steel Plain Dutch Weave Mesh, also known as wire mesh, it is made of high quality stainless steel wire. Similar to plain weave, it is weaved line by line. But for this kind of Stainless Steel Wire Cloth, the difference is the diameter of the weft is more thicker than the diameter of the warp. The weft wire is close together and then form a conical or wedge shaped hole. There is a big contrast between warp and weft wire diameter and density, so the net thickness and filtration precision and service life is significantly improved than common steel mesh. the filtering precision is running cannot be achieved for plain weave and Twill Weave Mesh screen.

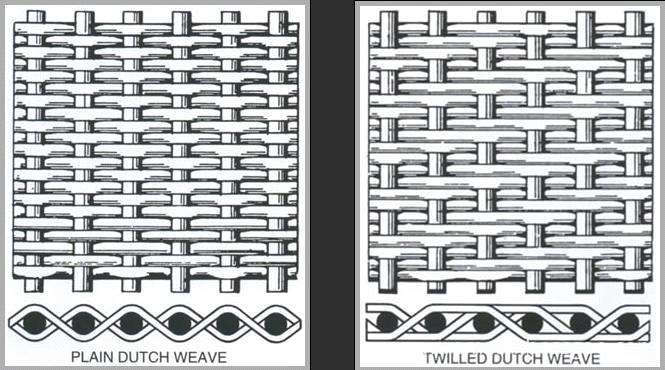

Weaving: There are two kinds of weaving technology of Dutch woven Stainless Steel Mesh . One is plain Dutch knitting and the other is twill Dutch knitting. The weaving technology of Dutch woven stainless steel mesh combines Dutch knitting and twill weaving techniques. The coarser thread interleaved the finer threads, weaving each thread through the weft. The weft wire is closely aligned to form a cone or wedge open hole.
Features: Dutch woven stainless steel mesh features 4 points:
1."Zero" mesh, the warp wire diameter than the weft to the larger diameter.
2. Each weft is very tight
3. High precision, high liquidity
4. Filter more solid particles than square or rectangular mesh holes
Material: 201,302,304 (L), 310,316 (L), etc
Application: The Dutch weave Stainless Steel Wire Mesh is one of the best filter medium in hydraulic system, especially the spatial filtering critical applications, as well as the fuel and combustion chamber filter, sediment filter, vacuum filter, etc.

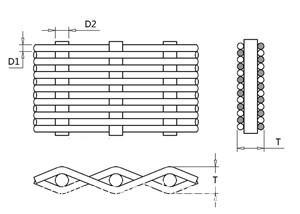

The warp wire (D1) : all longitudinal braided lines.
The weft wire (D2) : all horizontal weaving lines.
Aperture : the distance between two meridians or two weft.
Mesh number:number of mesh holes per inch.
Thickness (T) : thickness of wire mesh.
Specifiaction list:
Plain
Dutch Woven Stainless Steel Mesh
SPEC
NUMBER OF
HOLES PER INCH
WIRE DIAMETER
APERTURE(micron)
40
10mesh x 64mesh
0.55x0.42
260
50
12mesh x 75mesh
0.45x0.35
220
80
24mesh x 110mesh
0.35x0.25
160
100
25mesh x 140mesh
0.28x0.20
100
120
30mesh x 150mesh
0.25x0.18
80
140
35mesh x 180mesh
0.20x0.16
70
160
40mesh x 200mesh
0.18x0.13
60
180
45mesh x 220mesh
0.16x0.12
56
200
50mesh x 250mesh
0.15x0.11
50
240
60mesh x 300mesh
0.14x0.09
45
260
65mesh x 320mesh
0.13x0.08
36
280
70mesh x 400mesh
0.125x0.07
34
300
80mesh x 700mesh
0.11x0.039
32
